Solar Flood Light - JuBaoPen Series

Real‑shot Image
Dimension Drawing
Specifications
Parameters
Accessories

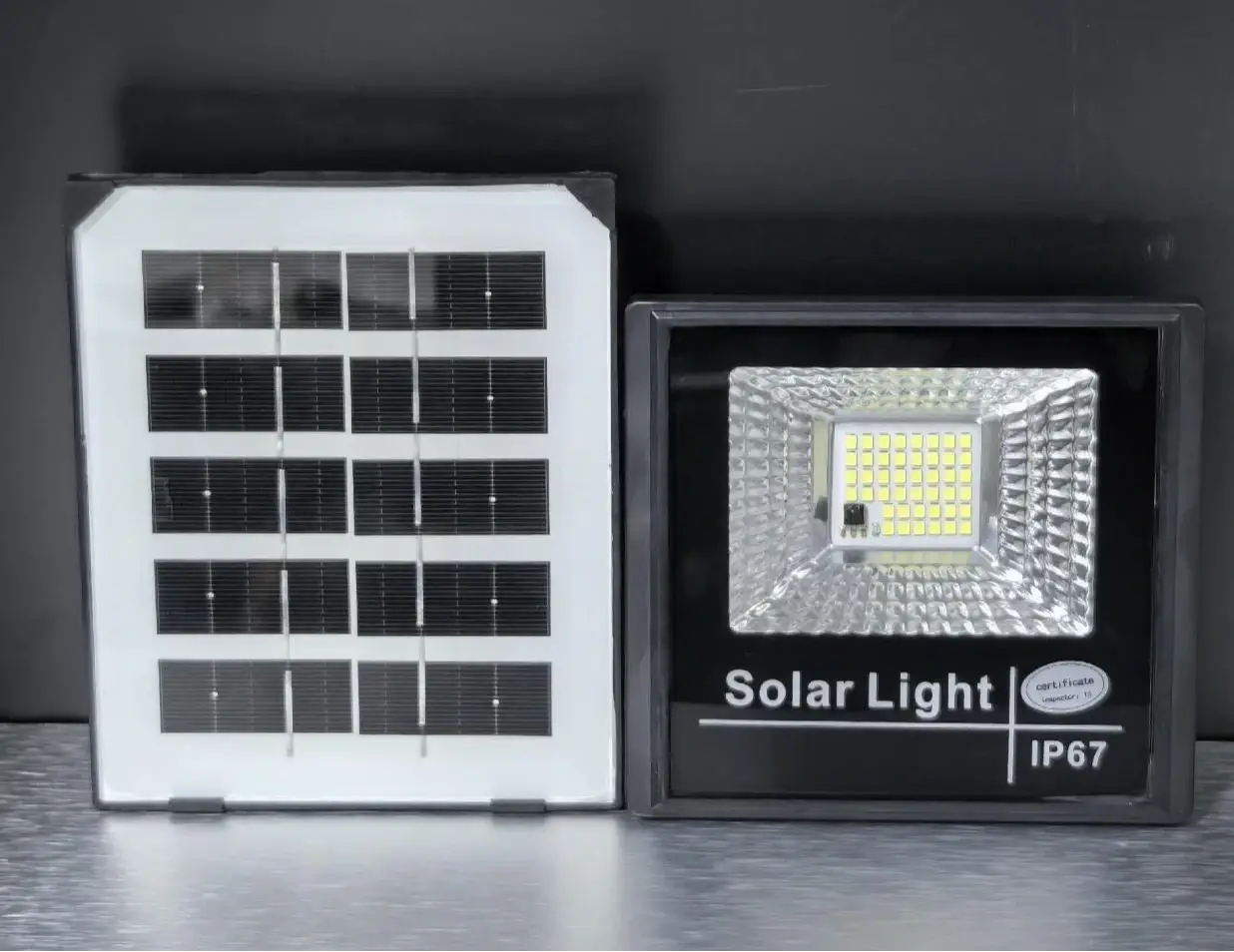

J‑25 solar flood light, lamp head with separated solar panel

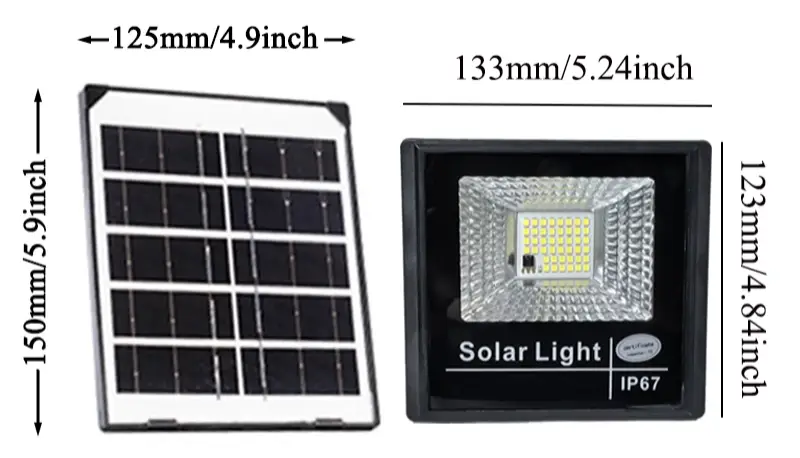

J‑25 solar flood light dimension drawing, size specification diagram

Special‑offer Model J‑25
(44 pcs high‑brightness LED beads)
Remote control, light sensor & timing function

Model: J‑25
LED Qty: 44 pcs
Lamp Head Size (mm): 133*123
Solar Panel Size (mm): 125*150
Solar Panel Power: 6V/2W
Battery Capacity: 0.8A
Lighting Duration: 8‑12H
Service Life: 3‑5 years
Illumination Area: 10㎡

Remote control
5‑meter cable
Screws
Mounting bracket
User manual

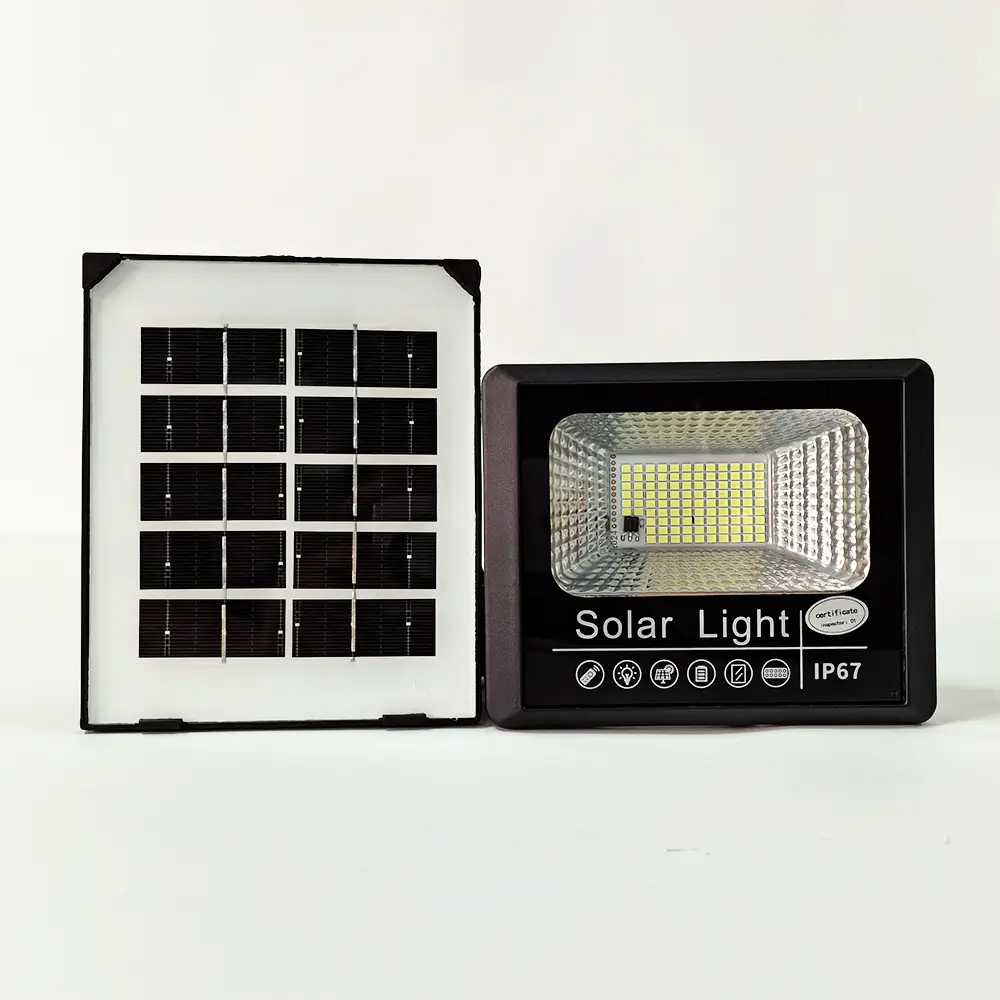

J-30 solar flood light, lamp head with separated solar panel

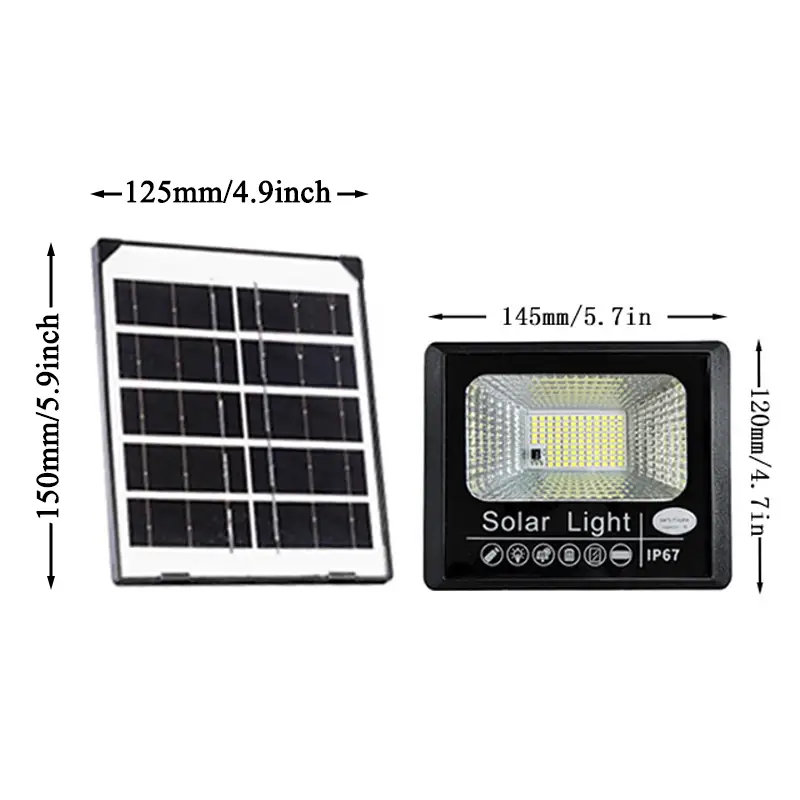

J-30 solar flood light dimension drawing, size specification diagram

High‑bright Model J‑30
(100 pcs high‑brightness LED beads)
Remote control, light sensor & timing function

Model: J‑30
LED Qty: 100 pcs
Lamp Head Size (mm): 120*145
Solar Panel Size (mm): 125*150
Solar Panel Power: 6V/2W
Battery Capacity: 1.2A
Lighting Duration: 8‑12H
Service Life: 3‑5 years
Illumination Area: 15㎡

Remote control
5‑meter cable
Screws
Mounting bracket
User manual

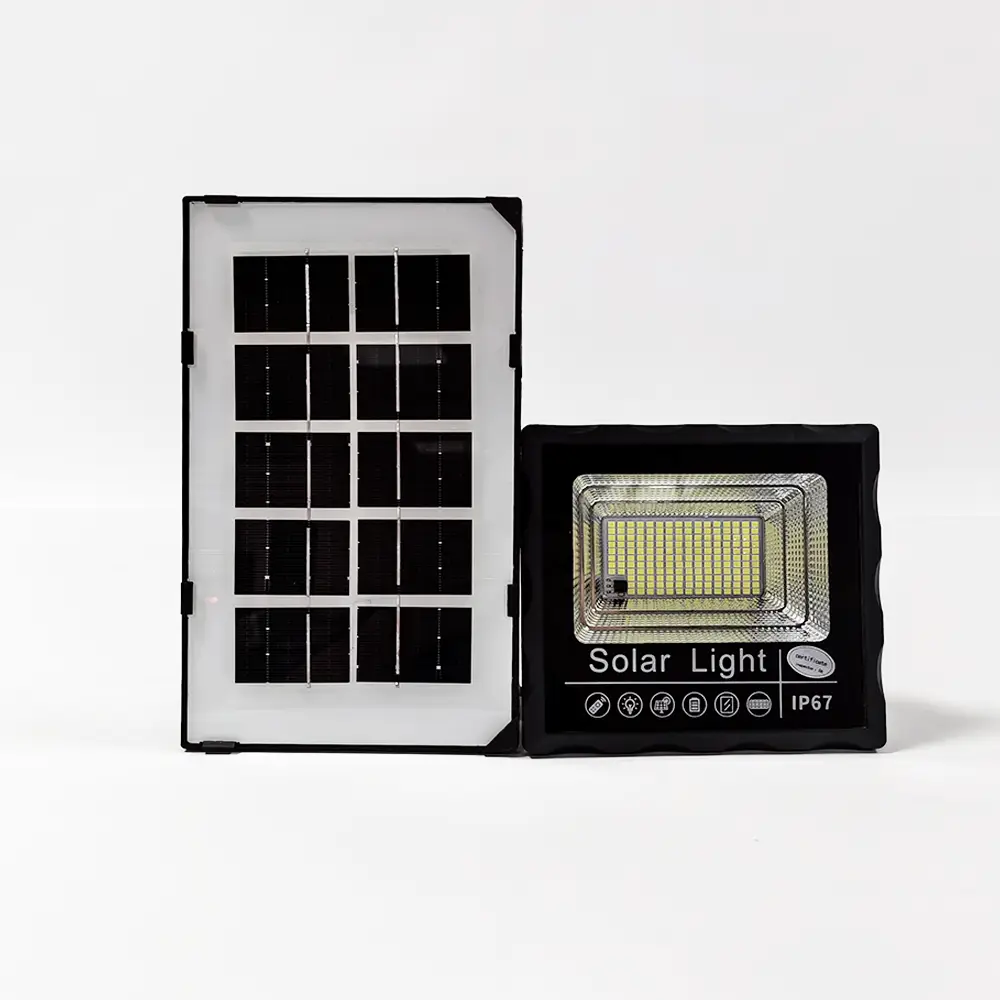

J-45 solar flood light, lamp head with separated solar panel

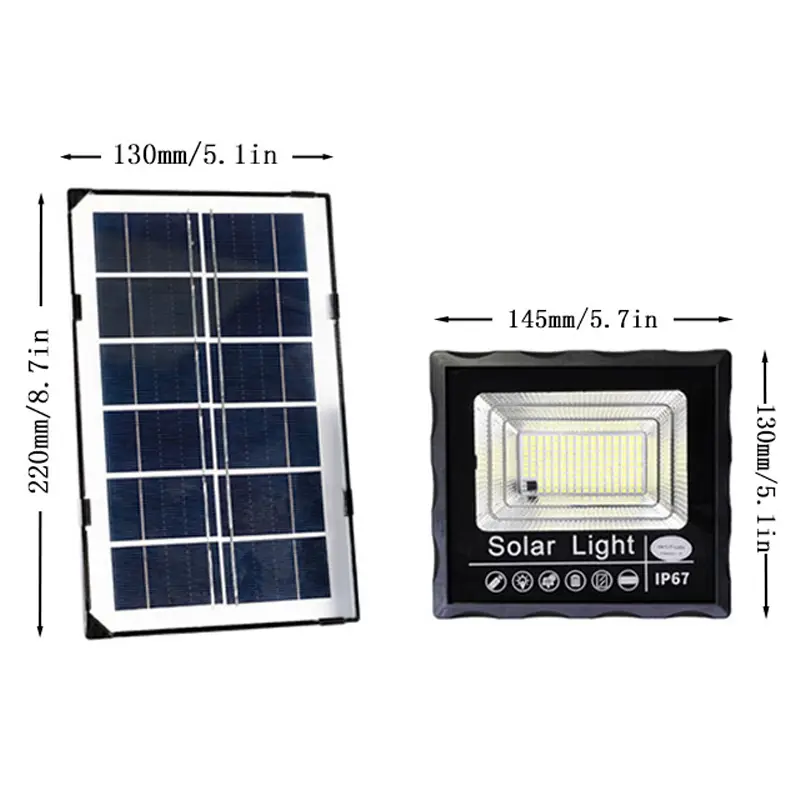

J-45 solar flood light dimension drawing, size specification diagram

High‑bright Model J‑45
(170 pcs high‑brightness LED beads)
Remote control, light sensor & timing function

Model: J‑45
LED Qty: 170 pcs
Lamp Head Size (mm): 130*145
Solar Panel Size (mm): 130*220
Solar Panel Power: 6V/3W
Battery Capacity: 1.2A
Lighting Duration: 8‑12H
Service Life: 3‑5 years
Illumination Area: 30㎡

Remote control
5‑meter cable
Screws
Mounting bracket
User manual

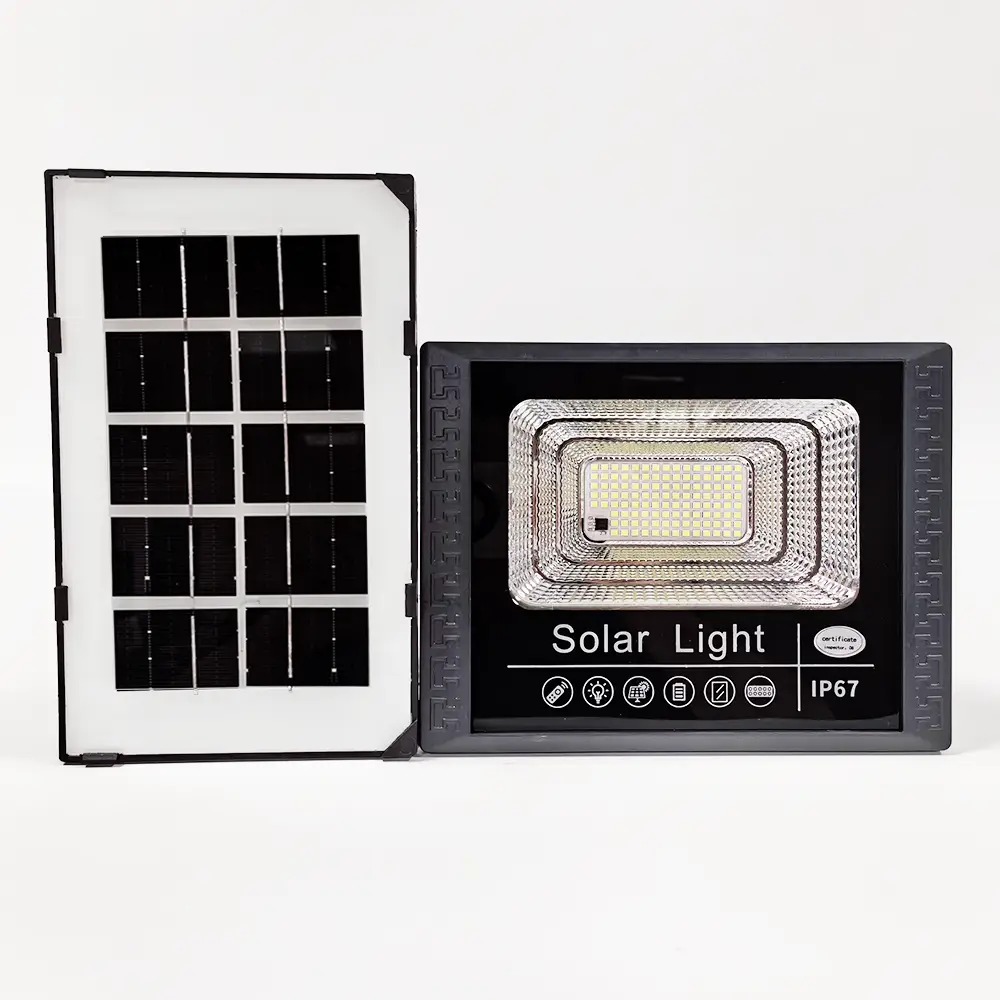

J-65 solar flood light, lamp head with separated solar panel

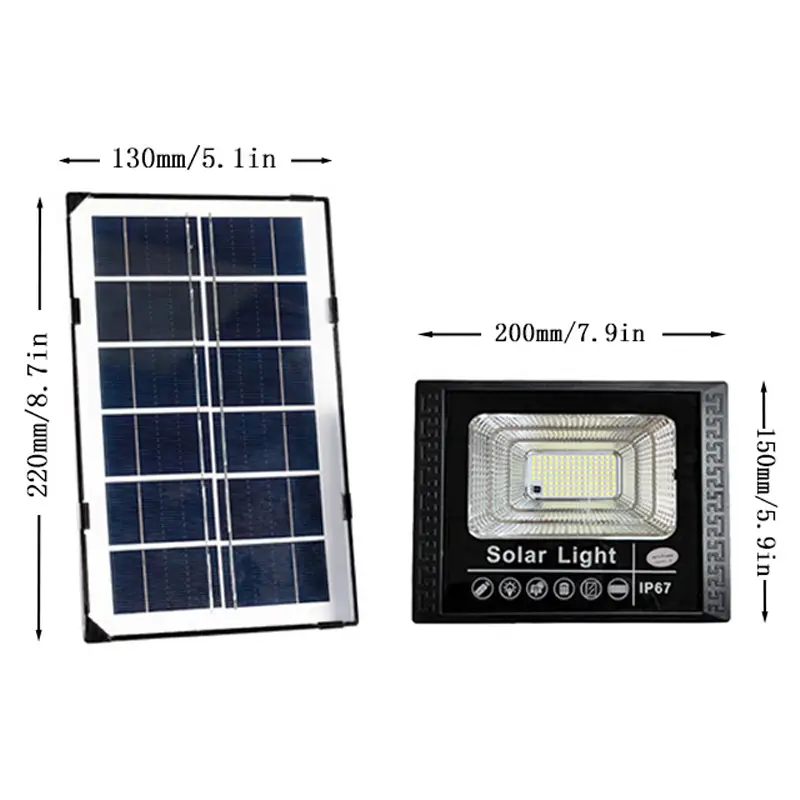

J-65 solar flood light dimension drawing, size specification diagram

High‑bright Model J‑65
(114 pcs high‑brightness LED beads)
Remote control, light sensor & timing function

Model: J‑65
LED Qty: 114 pcs
Lamp Head Size (mm): 150*200
Solar Panel Size (mm): 130*220
Solar Panel Power: 6V/3W
Battery Capacity: 1.5A
Lighting Duration: 8‑12H
Service Life: 3‑5 years
Illumination Area: 40㎡

Remote control
5‑meter cable
Screws
Mounting bracket
User manual

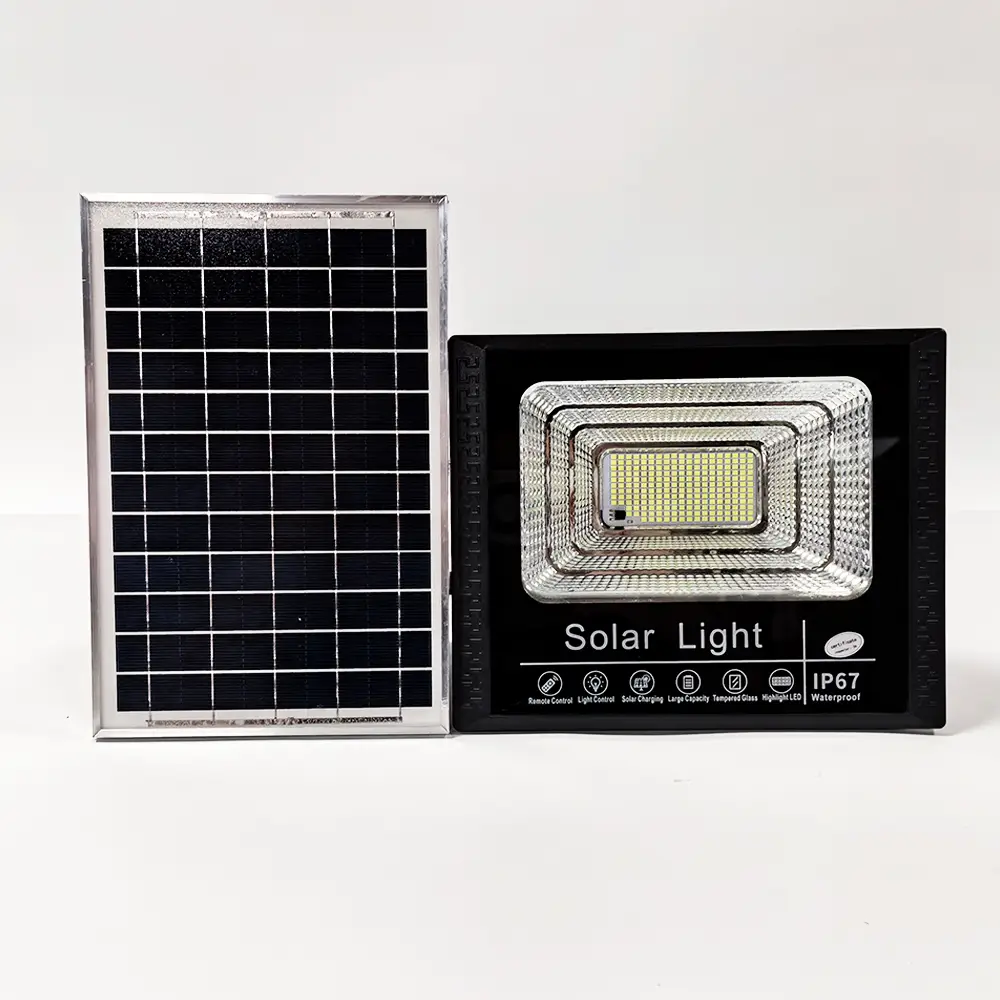

J-100 solar flood light, lamp head with separated solar panel

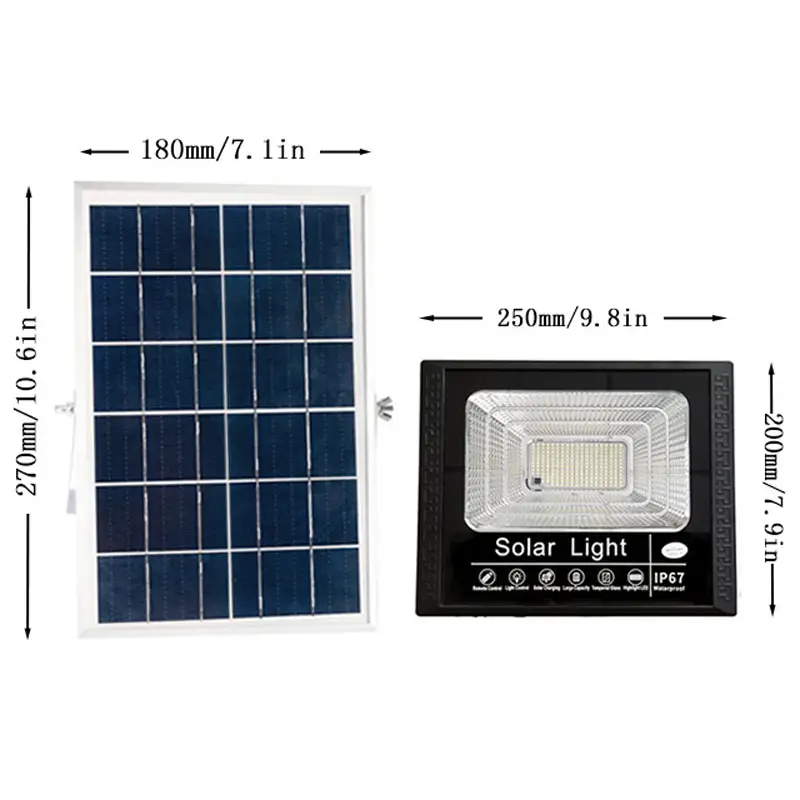

J-100 solar flood light dimension drawing, size specification diagram

High‑bright Model J‑100
(220 pcs high‑brightness LED beads)
Remote control, light sensor & timing function

Model: J‑100
LED Qty: 220 pcs
Lamp Head Size (mm): 200*250
Solar Panel Size (mm): 270*180
Solar Panel Power: 6V/6W
Battery Capacity: 3A
Lighting Duration: 8‑12H
Service Life: 3‑5 years
Illumination Area: 50㎡

Remote control
5‑meter cable
Screws
Mounting bracket
User manual

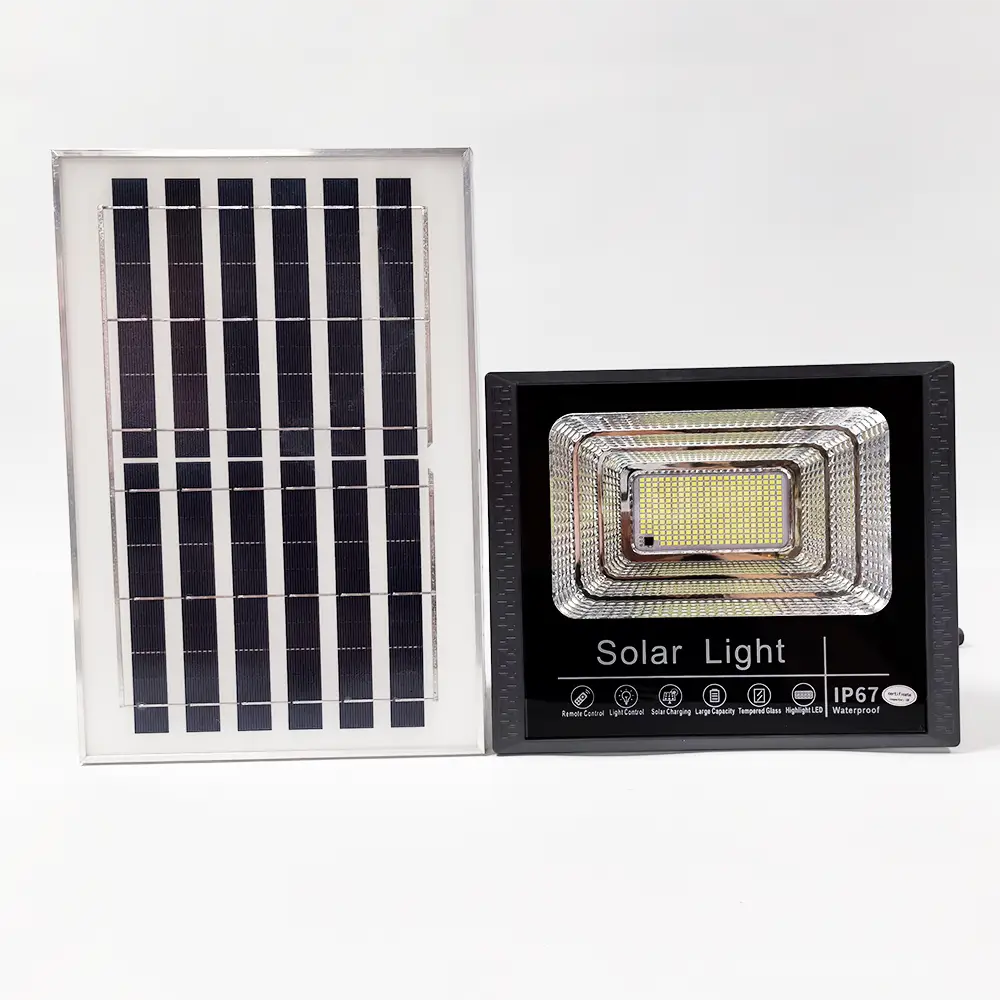

J-200 solar flood light, lamp head with separated solar panel

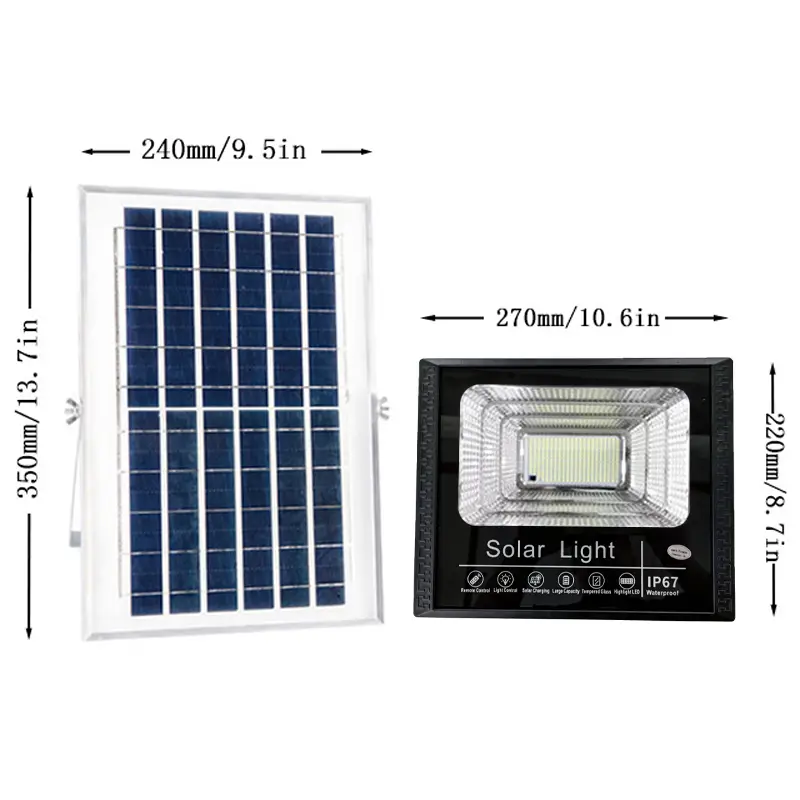

J-200 solar flood light dimension drawing, size specification diagram

High‑bright Model J‑200
(281 pcs high‑brightness LED beads)
Remote control, light sensor & timing function

Model: J‑200
LED Qty: 281 pcs
Lamp Head Size (mm): 220*270
Solar Panel Size (mm): 240*350
Solar Panel Power: 6V/8W
Battery Capacity: 4A
Lighting Duration: 8‑12H
Service Life: 3‑5 years
Illumination Area: 60㎡

Remote control
5‑meter cable
Screws
Mounting bracket
User manual

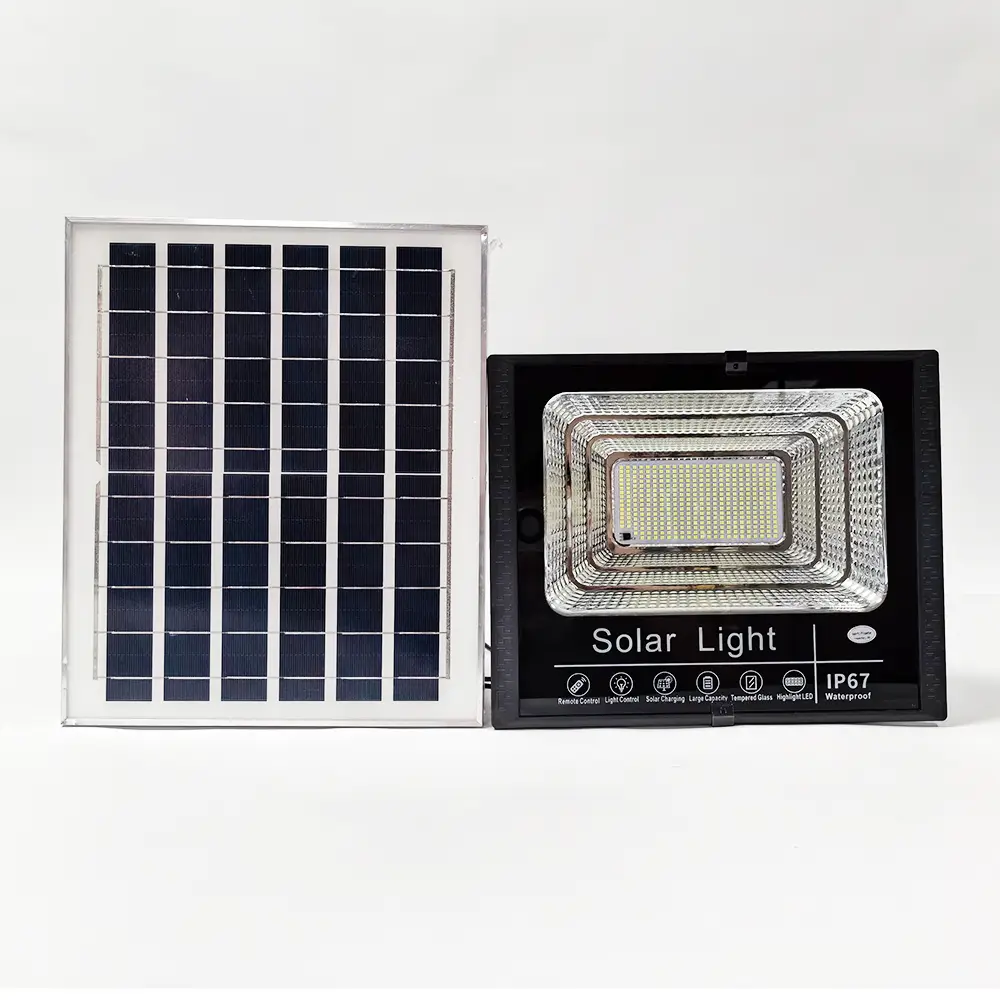

J-300 solar flood light, lamp head with separated solar panel

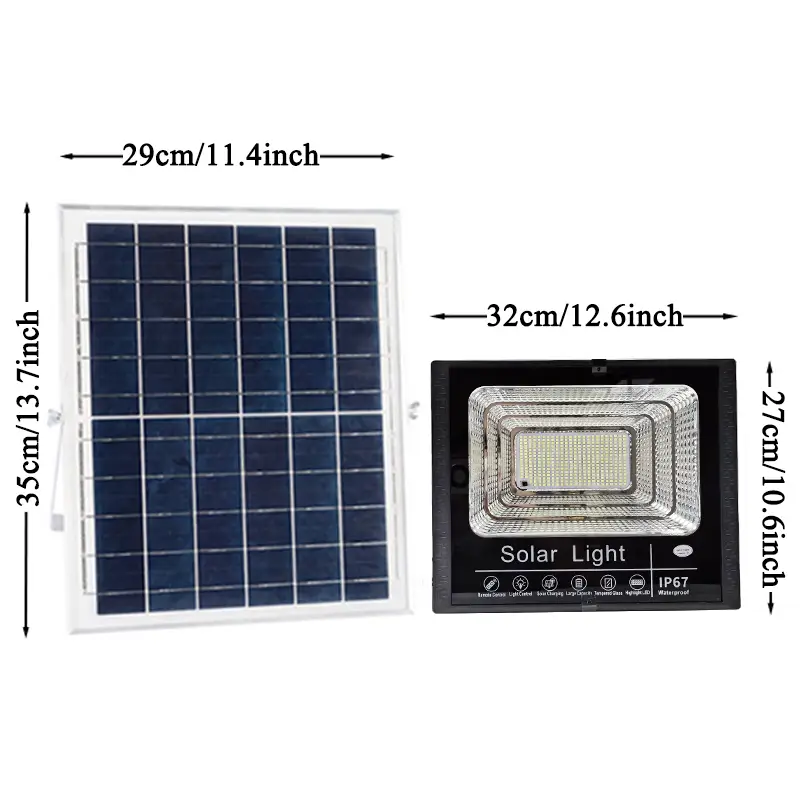

J-300 solar flood light dimension drawing, size specification diagram

High‑bright Model J‑300
(381 pcs high‑brightness LED beads)
Remote control, light sensor & timing function

Model: J‑300
LED Qty: 381 pcs
Lamp Head Size (mm): 270*320
Solar Panel Size (mm): 290*350
Solar Panel Power: 6V/12W
Battery Capacity: 5A
Lighting Duration: 8‑12H
Service Life: 3‑5 years
Illumination Area: 75㎡

Remote control
5‑meter cable
Screws
Mounting bracket
User manual

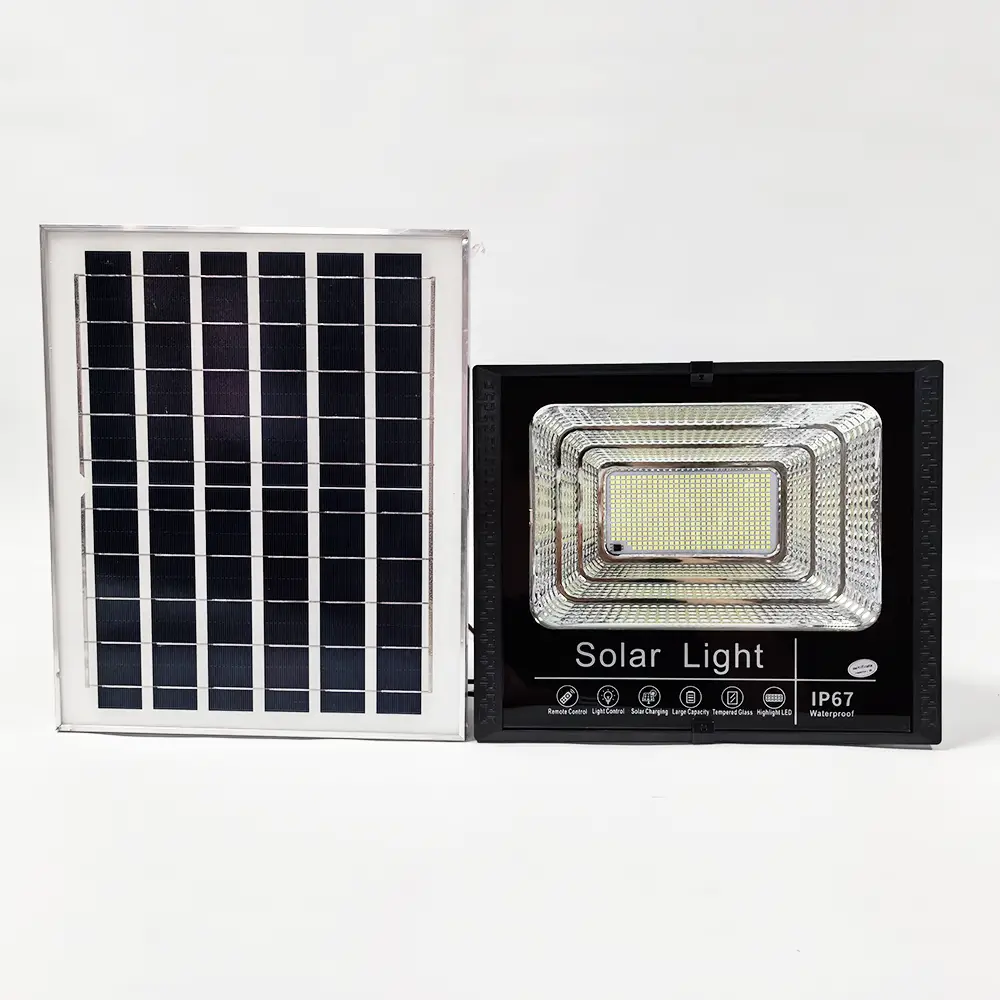

J-400 solar flood light, lamp head with separated solar panel

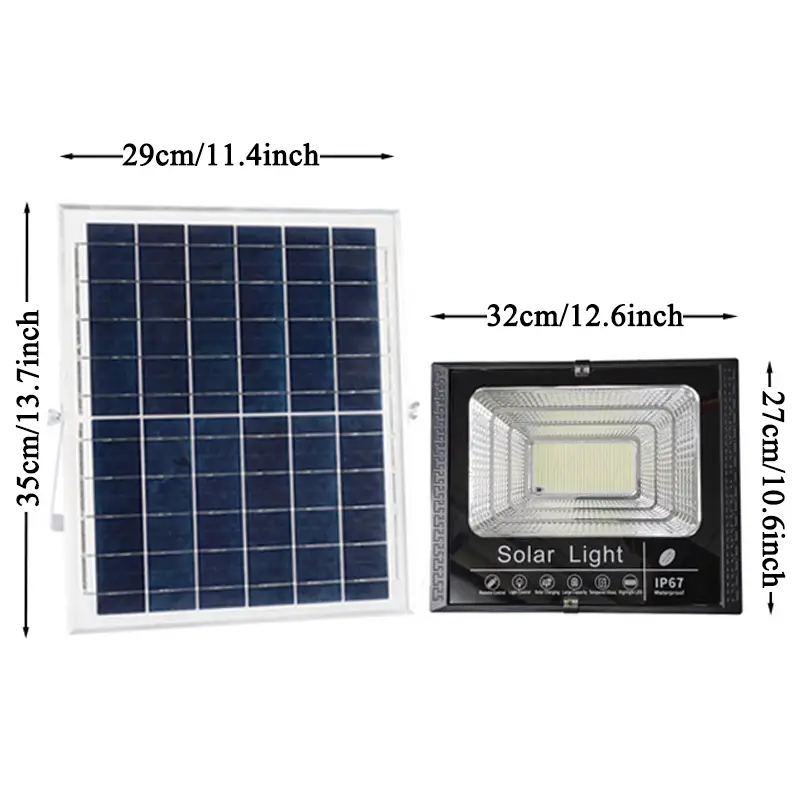

J-400 solar flood light dimension drawing, size specification diagram

High‑bright Model J‑400
(473 pcs high‑brightness LED beads)
Remote control, light sensor & timing function

Model: J‑400
LED Qty: 473 pcs
Lamp Head Size (mm): 270*320
Solar Panel Size (mm): 290*350
Solar Panel Power: 6V/12W
Battery Capacity: 5A
Lighting Duration: 8‑12H
Service Life: 3‑5 years
Illumination Area: 85㎡

Remote control
5‑meter cable
Screws
Mounting bracket
User manual

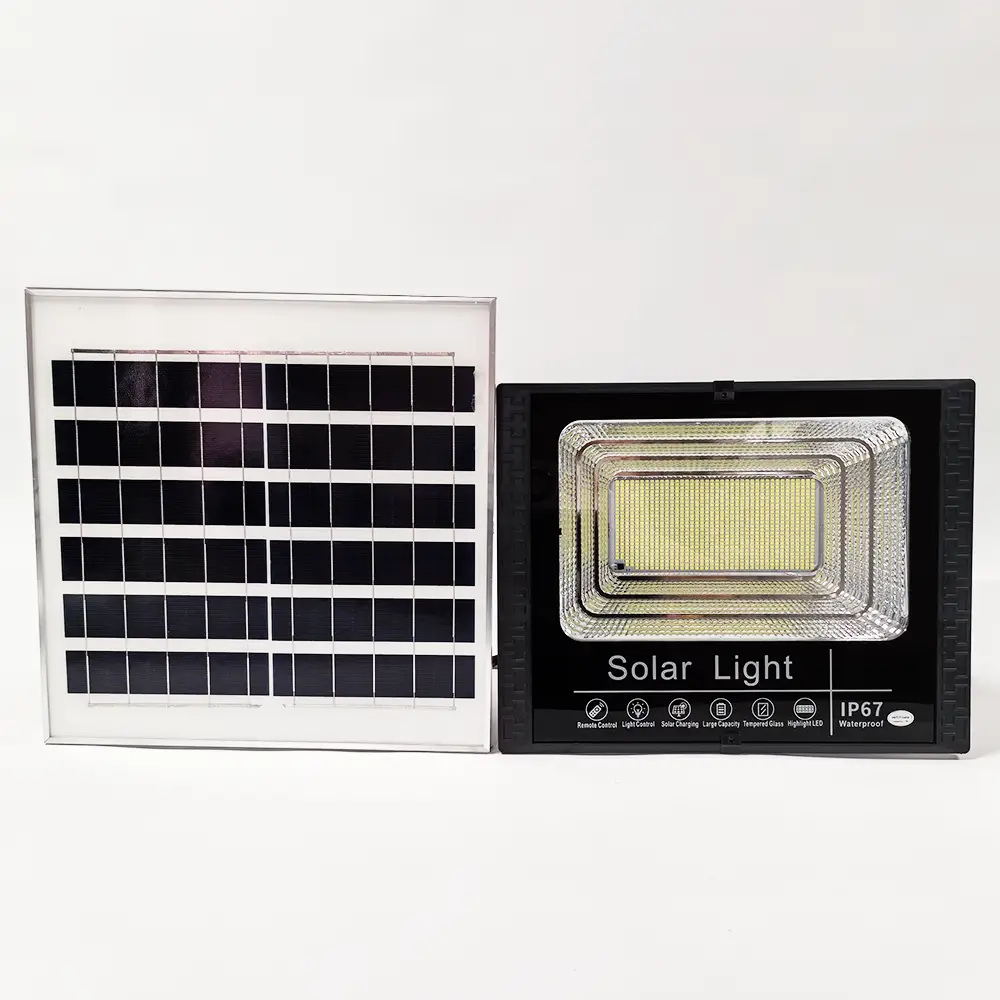

J-800 solar flood light, lamp head with separated solar panel

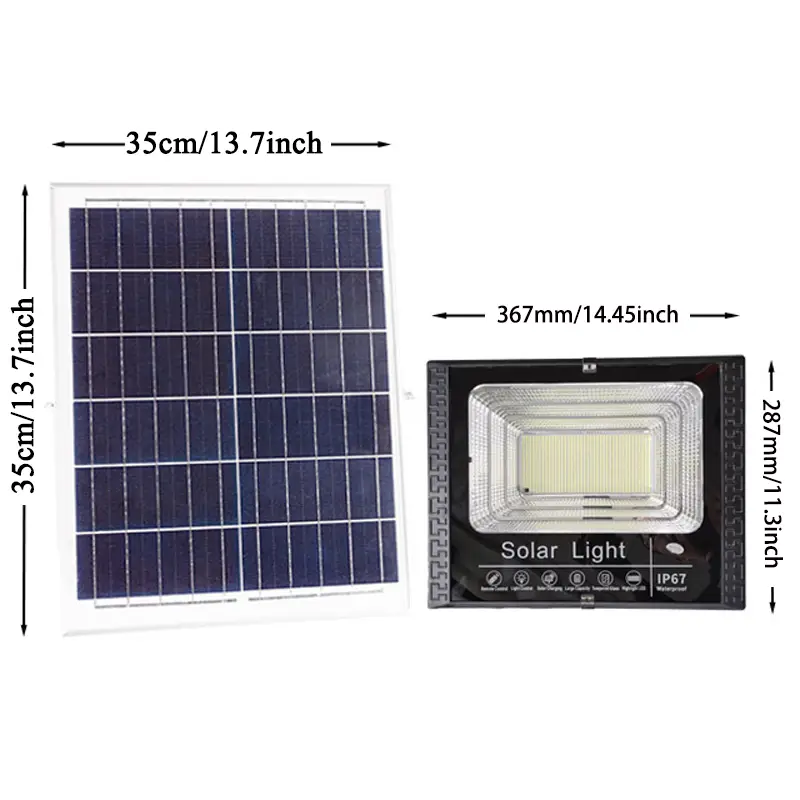

J-800 solar flood light dimension drawing, size specification diagram

High‑bright Model J‑800
(1032 pcs high‑brightness LED beads)
Remote control, light sensor & timing function

Model: J‑800
LED Qty: 1032 pcs
Lamp Head Size (mm): 367*287
Solar Panel Size (mm): 350*350
Solar Panel Power: 6V/15W
Battery Capacity: 6A
Lighting Duration: 8‑12H
Service Life: 3‑5 years
Illumination Area: 100㎡

Remote control
5‑meter cable
Screws
Mounting bracket
User manual
